2x Höheneinheiten (2HE / 2U) Rack-Server
Herstellerangaben: / Feature Summary:

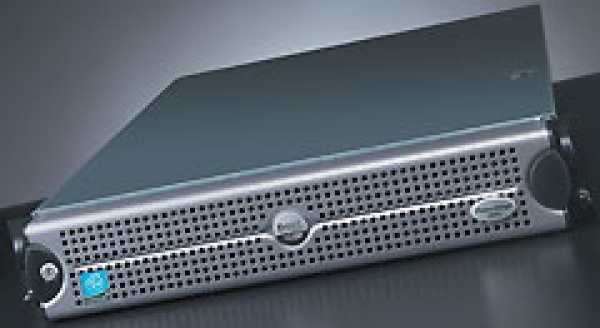

The PowerEdge 3250 server delivers excellent power and performance in a rack-optimized 2U form factor. It is designed to support two Itanium 2 processors, making it an ideal node for compute intensive High Performance Computing Clusters (HPCC). The latest generation in the Intel Processor Family, the Itanium 2 chip is based on the Explicitly Parallel Instruction Computing design philosophy to ensure performance scaling and address common architectural challenges.
Additionally, the server offers fast access to large data sets with 3 MB L3 of integrated cache and 8 GB of registered DDR200/266 SDRAM (max. up to 16 GB will be supported). Plus, it includes an Ultra 320 SCSI controller and a 400MHz system bus for fast interface from system bus to hard drives.
The PowerEdge 3250 server delivers excellent power and performance in a rack-optimized 2U form factor. It is designed to support two Itanium 2 processors, making it an ideal node for compute intensive High Performance Computing Clusters (HPCC). The latest generation in the Intel Processor Family, the Itanium 2 chip is based on the Explicitly Parallel Instruction Computing design philosophy to ensure performance scaling and address common architectural challenges.
Value and Expandability
Based on industry standard technology, the PowerEdge 3250 server can help contribute to innovations in supercomputing. It is compatible with many hardware and software products and cost-effectively integrates into your existing infrastructure. Additionally, the PowerEdge 3250 server offers investment protection and outstanding platform longevity by supporting multiple generations of the Itanium processor family.
The PowerEdge 3250 server offers further investment protection with highly expandable features. It is scalable, with up to eight DIMM slots enabling you to increase server memory as your needs increase. And it provides three PCI-X I/O slots so you can expand the functionality of your system by adding PCI-X cards.
Availability
Hot-plug redundant power supplies and hot-plug SCSI hard drives make the server highly available for the intense demands of HPCC. Plus, integrated mirroring enables you to mirror the operating system or data on local drives to guard against system outages or data loss. Advanced Machine Check further helps minimize loss, corruption or downtime.
Manageability and Serviceability
The PowerEdge 3250 server is designed for simple manageability. Its remote management capabilities enable you to manage your remote server infrastructure from a centralized location. Integrated Baseboard Management Controller support allows remote access through a serial port or network connection without consuming a dedicated PCI slot. Plus, the PowerEdge 3250 provides an intuitive graphical user interface to easily monitor server status and control system activities.
The PowerEdge 3250 server provides excellent power and performance for the price making it a compelling alternative to RISC-based systems for High Performance Computing Environments.
Technik / Ausstattung
-
2x 1,4 GHz 64-Bit Intel Itanium 2 CPUs /256KB L2 + 3 MB L3 Cache
-
16 GB PC2100R ECC RAM (8x 2GB)
-
Chipset: Intel E8870 chipset
-
I/O Channels 5 total: 3 x 64-bit/100MHz PCI-X slot, and 2 x Gigabit embedded NICs
-
Availability:
Advanced machine check architecture, memory scrubbing,
and end-to-end ECC protection for all data,
Embedded RAID 1 for internal hard drives
-
Front Panel: Active ID (bezel), 2 x USB 1.1, 1 x Video, system indicator light,
power supplies, LEDs: general fault, NIC activity, hard drive activity
-
Rear Panel: System ID, 2 x USB 1.1, 1 x Video, 2 x RJ-45, 3 x PCI-X
- 2x Intel PRO1000 Gigabit Ethernet Controller on board
-
Grafikadapter: ATI Rage XL on board with 8 MB RAM
-
Embedded SCSI: Dual Channel U320 SCSI Controller on board
-
Internal Storage: 2 x 73 GB 10K U320 SCSI drives
-
Erweiterungseinschübe gesamt :
2 x Hot-Swap - 8,89 cm (3.5") x 1/3H
2 x von vorne zugänglich - 8,89 cm (3.5") x 1/6H
1 x von vorne zugänglich - 13,97 cm (5,25") x 1/6H (Slim Line)
-
Erweiterungssteckplätze gesamt:
8 x Speicher - DIMM 184-PIN (4x frei)
2 x Prozessor - Socket 700
1 x PCI-X Hot-Plug 133 MHz - Volle Länge
2 x PCI-X Hot-Plug 100 MHz - Volle Länge
-
CDROM drive: slimline, internal
-
PSU / Netzteile:
3x hot swap 350 watts in redundant configuration (2 + 1)
-
die Maschine ist in einem guten technischen und optischen Zustand, leichte Gebrauchsspuren/Kratzer
-
gebraucht, Leasingrücklauf
-
Seriennummer: 6BQV541
Lieferumfang: ohne Montageschienen, ohne Software, ohne Handbuch, ohne Treiber, ohne Maus, ohne Tastatur
inkl. Stromkabel, Frontpanel ohne Schlüssel (Schloss geöffnet)
delivery without rails, software, without driver, without mouse, without keyboard
aktuelle Treiber können von Dell/support/downloads runtergeladen werden.
