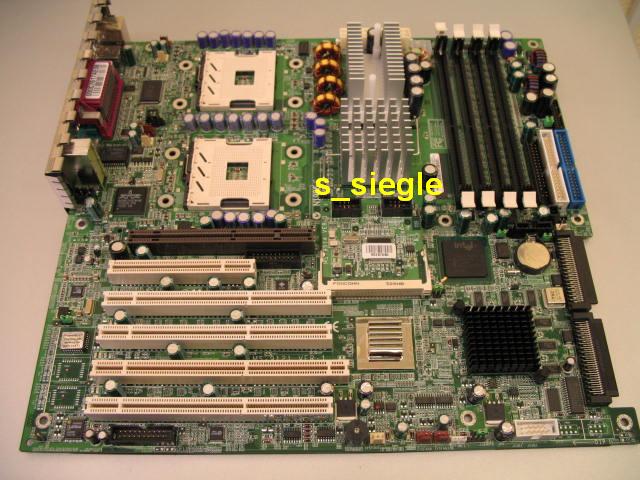

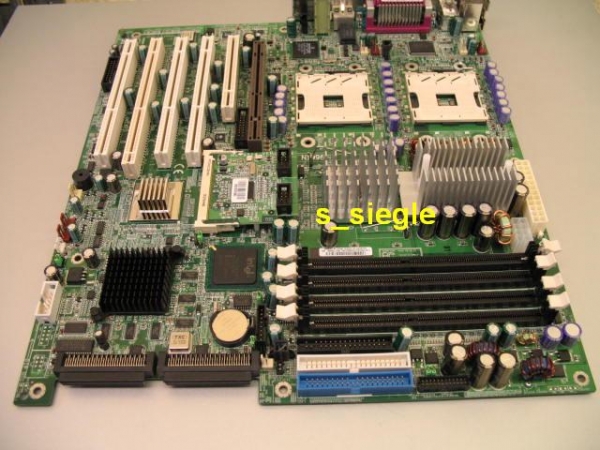

Systemboard IBM FRU P/N 23K4013
für IBM Intellistation Z Pro 6221 workstation
inkl. FireWire expansion card MS-9514 Ver 1
Ausstattung:
Dual Sockel 604 Systemboard, IBM FRU P/N 23K4013
Chipset: Intel E7505
4x DIMM Slots, 184 pin registered PC2100R ECC RAM erforderlich / required
2x IDE, 1x FDD port
4x USB 2.0 (2x standard hinten + Anschluß auf dem Board für 2x weitere in Front)
2x IEEE 1394 (FireWire). 1x 6-pin hinten, 1x 4-pin für front mithilfe beigelegter Expansion - card IBM FRU 49P1752
1x RJ 45, parallelport, 2x seriell, 2x PS72
Intel Corporation 82801DB AC'97 Audio Controller
Intel Corporation 82801DB USB UHCI Controller (USB 1.1)
Intel Corporation 82801DB USB EHCI Controller (USB 2.0)
Texas Instruments (TI) TSB43AB22 1394a-2000 OHCI PHY/Link-Layer Controller
LSI Logic (Symbios Logic, NCR) LSI53C1020/1030 PCI-X to Ultra320 SCSI Controller,Dual Channel, RAID 1 Support
Intel Corporation 82801DB (ICH4) UltraATA/100 EIDE Controller
Broadcom Corp BCM5703X NetXtreme Gigabit Ethernet Adapter
Expansion Slots:
1x AGP 8x
1x PCI 32-Bit 33 MHz
4x PCI-X 64-Bit 100 MHz
condition: used, good working condition.
Zustand: gebraucht, funktionsfähig.
Delivery contents: without accessoires/drivers
Lieferumfang: ohne Zubehö
