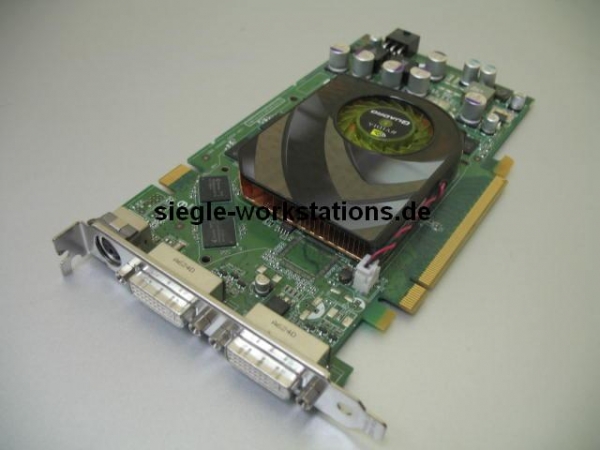

Grafikkarte für professionellen CAD-Einsatz,
orig. Dell, IBM, HP oder FSC Zubehör.
Dell P/N: 0WH242, FSC P/N: S26361-D1653-V350, HP P/N 413110-001
Technical specifikations (Herstellerangaben):
Graphics Controller: NVIDIA NV71GL-U
Bus Type: PCI-Express x16
Memory: 256MB 700MHz GDDR3 SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors: 2 dual-link DVI-I + 3-pin Mini DIN stereo output
Display resolution support:
Dual integrated analog display controllers supporting up to two analog displays at 2048x1536 @ 75Hz on both displays or dual digital displays at 1920x1200 (single-link) and 3840x2400 (dual-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft® Windows®
RAMDAC: Dual 400MHz integrated
Architecture Features:
256-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
8x FSAA at 1920x1200, 4x at 2048x1536, rotated grid FSAA sampling
algorithm
Hardware accelerated anti-aliased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
3rd generation occlusion culling
3D volumetric texture support
Quad-buffered stereo
Dual Link DVI enabling driving digital displays up to 3840x2400 (24Hz) SLI Link
Minimum System Requirements
PC compatible with Intel Pentium® 4/Xeon® or AMD Opteron® class processor or higher
Open PCI Express x16 lane slot
Microsoft Windows XP, 2000, or Linux
256MB system memory
50MB of available disk space for full installation
CD-ROM or DVD-ROM drive
VGA or DVI-I compatible display (für VGA ein Adapter erforderlich)
350W power supply (450W required for SLI)
Requires auxiliary power (6 pin PCIe-Stromversorgung)
Treiber gibtes im Internet bei Nvidia (Quadro wählen) oder bei Ihrem Systemhersteller
condition: used, good working condition.
Zustand: gebraucht, funktionsfähig.
Delivery contents: without accessoires/drivers
Lieferumfang: ohne Zubehör, ohne Treiber
