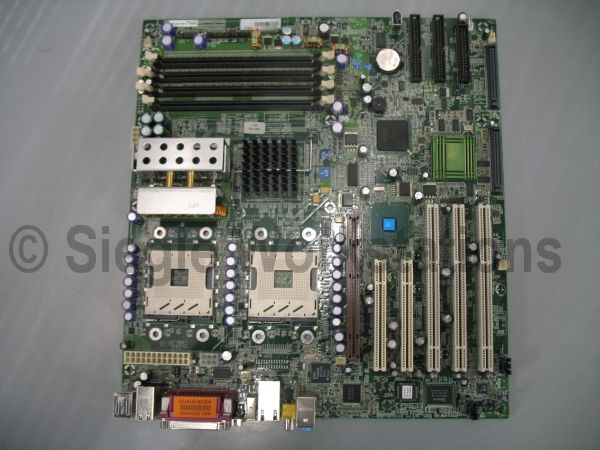

Fujitsu-Siemens Mainboard S26361-D1357-A102
Hersteller / Vendor: Tyan Computer Corporation (i7505 S2665 - FSC OEM)
es handelt sich um ein Ersatzteil für: FSC Celsius R610 Workstation
Technische Daten:
Systemboard: Tyan Computer Corporation S26361-D1357 Dual Sockel 604 Board (FSC OEM)
Chipset: Intel E7505 + Intel ICH4
supports Intel Xeon CPUs up to 3,06 GHz, FSB 533, HT
4x DIMM Slots, Dual Channel.
supports unbuffered 184 pin DDR RAM PC2100U ECC or PC2700U ECC
or PC2100U non-ECC PC2700U non-ECC
max. 3,5 GB RAM supported
2x IDE 40 pol, 1x FDD ports
6x USB 2.0 (4x back + 2x front (9-pin header)
2x IEEE 1394 ports (FireWire) 1x 6-pin back, 1x header front
1x RJ 45 port
LPT1, COM1, 2x PS/2
Intel 82801DB integrated UltraDMA-100 Controller (ICH4), up to 2x 2 drives
Audio analog devices AD1981A,
Intel i82540 Gigabit Controller 10/100/1000 MB/s
Adaptec integrated AIC 7902 U320 SCSI Controller, Dual Channel
FireWire Controller on board
Expansion slots:
1x AGP 8x Pro 50 (1,5 V)
2x PCI 32-Bit 33 MHz full lengh / volle Länge
1x PCI-X 64-Bit 133 MHz full lengh / volle Länge
2x PCI-X 64-Bit 100 MHZ full lengh / volle Länge
Lieferumfang: FSC S26361-D1357-A102 Dual Sockel 604 Board ohne Zubehör
Treiber können nach der Eingabe von Seriennummer von FSC Support-Webseite runtergeladen werden.
Zustand: gebraucht, funktionsfähig.
Condition: used, good working condition
Lieferumfang kein Zubehör, kein Treiber, OHNE I/O Slotblech
